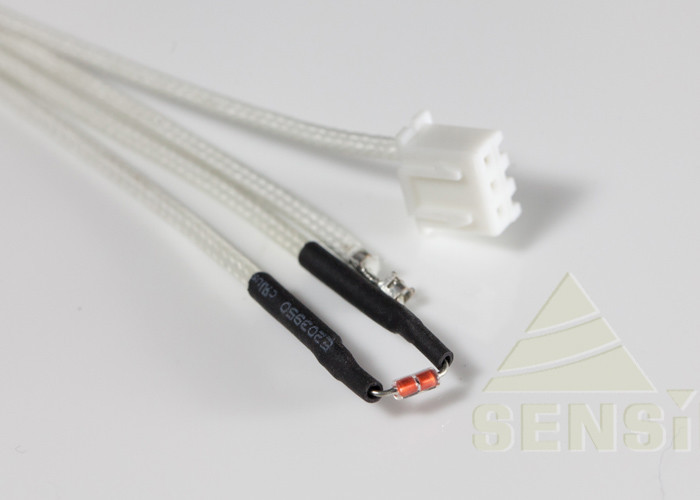

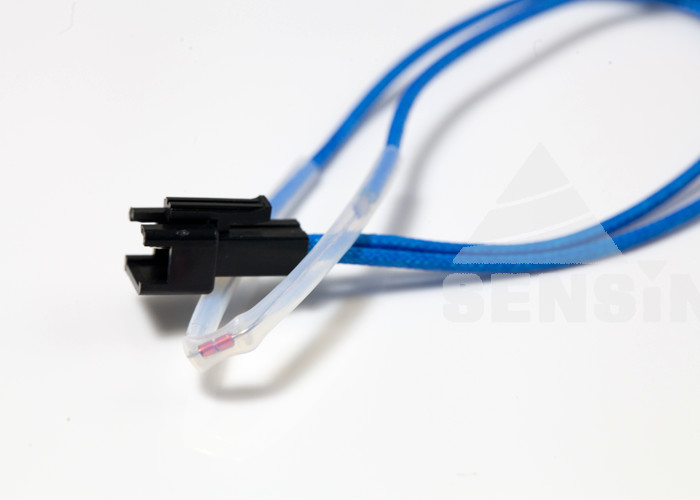

Copper Crimp Sensor , with Glass Sealed NTC Elements , Widely Used in Induction Cooker , Fast Heating
| Type | Glass sealed axial lead NTC thermistor |
| Functions | Temperature Minsing, temperature compensation |
| R25(Ω) | 5K 10K 20K 30K 47K 50K 100K 200K, 1% 2% 3% 5% |
| B Value | 3435 3470 3950 3977 3990 4000 4300 4350, 2% 3% |
| Operation Temp. | -40~250 Degrees Celsius |
| Application | Home appliances, automotive electronics, heaters |
Product features:
- Temperature compensation and detection
- Resistance spec. applicable in a wide temperature range
- Covers a wide temperature control range
- Long-term stability in resistance
- High-level heat resistance and environmental stability secured by glass encapsulation
Application:
- Electric Oven / Induction Cooker / Electrical Iron
- Rice cooker / Electric fans / Electric heaters
- Voltage boiler/ Disinfection tank / Microwave ovens
Specification Explain:
SJ MF P -1 -3950 -502 F
① ② ③ ④ ⑤ ⑥ ⑦
① Minsing Co.,Ltd
② NTC thermistor
③ Encapsulation probe
P: Anomalous probe encapsulated
④ Anomalous probe types:
1 .Copper crimp type, 2. Surface testing type, 3. Bullet type,
4 .Flange type, 5. Cap shell type, 6 .Screw thread type, 7. Clamp type
⑤ B value(B 25/50℃) Example: 3950:B 25/50℃: 3950
⑥ Standard resistance value at 25℃(R25℃):
Example:502:R25℃ 5KΩ
⑦ R25℃ interchangeability precision:
F(±1%); G(±2%); H(±3%); J(±5%); K(±10%)
Specification:
| Specification | R25℃ (KΩ) | B25/50℃ (K) | Disspation constant | Thermal time constant | Operating temp. range |
| SJMF□-□280-301□ | 0.3 | 2800 | ln still air ≥2.4mW/℃ | ln still air ≤10s | -40～250℃ |
| SJMF□-□338/350-202□ | 2 | 3380/3500 |
| SJMF□-□327/338-502□ | 5 | 3270/3380 |
| SJMF□-□327/338-103□ | 10 | 3270/3380 |
| SJMF□-□347/395-103□ | 10 | 3470/3950 |
| SJMF□-□395-203□ | 20 | 3950 |
| SJMF□-□395/399-473□ | 47 | 3950/3990 |
| SJMF□-□395/399-503□ | 50 | 3950/3990 |
| SJMF□-□395/399-104□ | 100 | 3950/3990 |
| SJMF□-□420/425-204□ | 200 | 4200/4250 |
| SJMF□-□440-474□ | 470 | 4400 |
| SJMF□-□445/453-145□ | 1400 | 4450/4530
|
Hefei Minsing Automotive Electronic Co., Ltd is one of the most professional NTC Thermistor and Temperature Sensor manufacturers and programme suppliers in China for about 28 years. Our products are widely used for the household electric appliances and auto industry. Our team will serve for you from the beginning of your source to the very end of the shipment. We are exporter based on factory so that the cost can be saved directly for you .
